Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Rated current10A
Voltage typeAC
Leakage current typeAC
Degree of protection (IP)IP20
Rated insulation voltage Ui-V
Frequency50 Hz
Width in number of modular spacings4
Rated fault current0.01A
Over voltage category-
Rated voltage230V
Release characteristicC
Pollution degree2
Number of protected poles2
Current limiting class3
Surge current capacity0.25kA
Concurrently switching neutral conductorYes
Built-in depth44mm
Rated short-circuit breaking capacity according to IEC 60947-210kA
Suitable for flush-mounted installationYes
Connectable conductor cross section multi-wired1 - 25mm²
Connectable conductor cross section solid-core1 - 35mm²
With interlocking deviceYes
Ambient temperature during operating- - -°C
Rated impulse withstand voltage Uimp-kV
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Rated short-circuit breaking capacity according to EN 610096kA
Number of poles (total)2
Anti-nuisance tripping versionNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

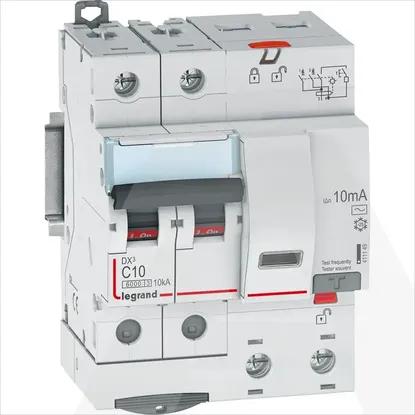

411149 | KZS DX3 2P C10 6KA AC 10MA 4M
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Earth leakage circuit breaker
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Rated current
10A
Voltage type
AC
Leakage current type
AC
Degree of protection (IP)
IP20
Rated insulation voltage Ui
-V
Frequency
50 Hz
Width in number of modular spacings
4
Rated fault current
0.01A
Over voltage category
-
Rated voltage
230V
Release characteristic
C
Pollution degree
2
Number of protected poles
2
Current limiting class
3
Surge current capacity
0.25kA
Concurrently switching neutral conductor
Built-in depth
44mm
Rated short-circuit breaking capacity according to IEC 60947-2
10kA
Suitable for flush-mounted installation
Connectable conductor cross section multi-wired
1 .. 25mm²
Connectable conductor cross section solid-core
1 .. 35mm²
With interlocking device
Ambient temperature during operating
- .. -°C
Rated impulse withstand voltage Uimp
-kV
Rated short-circuit breaking capacity Icn according to EN 61009-1
6kA
Rated short-circuit breaking capacity according to EN 61009
6kA
Number of poles (total)
2
Anti-nuisance tripping version
