Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Surge current capacity0.25kA
Rated voltage230V
Rated insulation voltage Ui-V
Rated fault current0.03A
Voltage typeAC
Leakage current typeAC
Rated current10A
Release characteristicC
Built-in depth44mm
Suitable for flush-mounted installationYes
Connectable conductor cross section solid-core1 - 35mm²
Over voltage category-
Rated short-circuit breaking capacity according to IEC 60947-210kA
Current limiting class3
Degree of protection (IP)IP20
Pollution degree2
Frequency50 Hz
Concurrently switching neutral conductorYes
Number of protected poles2
Width in number of modular spacings4
Rated short-circuit breaking capacity according to EN 610096kA
Connectable conductor cross section multi-wired1 - 25mm²
Rated impulse withstand voltage Uimp-kV
Anti-nuisance tripping versionNo
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Ambient temperature during operating- - -°C
With interlocking deviceYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

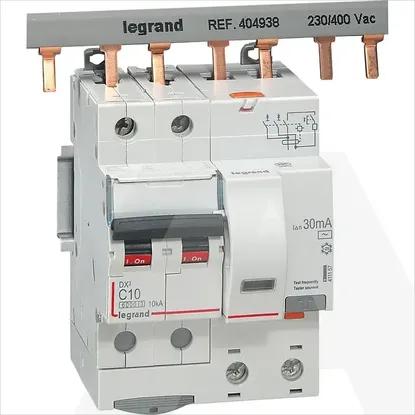

411157 | KZS DX3 2P C10 6KA AC 30MA 4M
