Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Over voltage category-
Rated insulation voltage Ui-V
Current limiting class3
Built-in depth44mm
Release characteristicC
Surge current capacity0.25kA
Rated current20A
Rated voltage230V
Rated fault current0.03A
Number of protected poles2
Pollution degree2
Degree of protection (IP)IP20
Frequency50 Hz
Concurrently switching neutral conductorYes
Width in number of modular spacings4
Leakage current typeAC
Suitable for flush-mounted installationYes
Number of poles (total)2
Connectable conductor cross section solid-core1 - 35mm²
Rated short-circuit breaking capacity according to EN 610096kA
Rated impulse withstand voltage Uimp-kV
Connectable conductor cross section multi-wired1 - 25mm²
Anti-nuisance tripping versionNo
Rated short-circuit breaking capacity according to IEC 60947-210kA
With interlocking deviceYes
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Ambient temperature during operating- - -°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

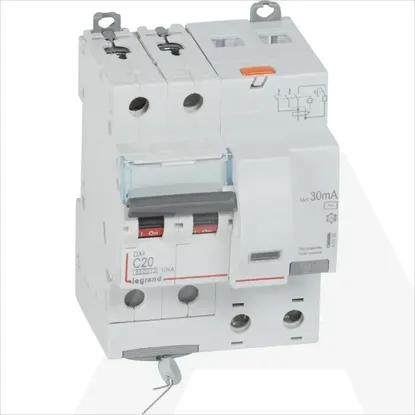

411159 | KZS DX3 2P C20 6KA AC 30MA 4M
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Earth leakage circuit breaker
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Voltage type
AC
Over voltage category
-
Rated insulation voltage Ui
-V
Current limiting class
3
Built-in depth
44mm
Release characteristic
C
Surge current capacity
0.25kA
Rated current
20A
Rated voltage
230V
Rated fault current
0.03A
Number of protected poles
2
Pollution degree
2
Degree of protection (IP)
IP20
Frequency
50 Hz
Concurrently switching neutral conductor
Width in number of modular spacings
4
Leakage current type
AC
Suitable for flush-mounted installation
Number of poles (total)
2
Connectable conductor cross section solid-core
1 .. 35mm²
Rated short-circuit breaking capacity according to EN 61009
6kA
Rated impulse withstand voltage Uimp
-kV
Connectable conductor cross section multi-wired
1 .. 25mm²
Anti-nuisance tripping version
Rated short-circuit breaking capacity according to IEC 60947-2
10kA
With interlocking device
Rated short-circuit breaking capacity Icn according to EN 61009-1
6kA
Ambient temperature during operating
- .. -°C
