Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Width in number of modular spacings4
Built-in depth44mm
Over voltage category-
Frequency50 Hz
Leakage current typeAC
Voltage typeAC
Rated insulation voltage Ui-V
Degree of protection (IP)IP20
Current limiting class3
Number of protected poles2
Rated voltage230V
Concurrently switching neutral conductorYes
Rated current50A
Rated short-circuit breaking capacity according to IEC 60947-210kA
Surge current capacity0.25kA
Release characteristicC
Rated fault current0.03A
Pollution degree2
Ambient temperature during operating- - -°C
Connectable conductor cross section solid-core1 - 35mm²
Connectable conductor cross section multi-wired1 - 25mm²
Rated impulse withstand voltage Uimp-kV
Number of poles (total)2
Suitable for flush-mounted installationYes
With interlocking deviceYes
Anti-nuisance tripping versionNo
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Rated short-circuit breaking capacity according to EN 610096kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

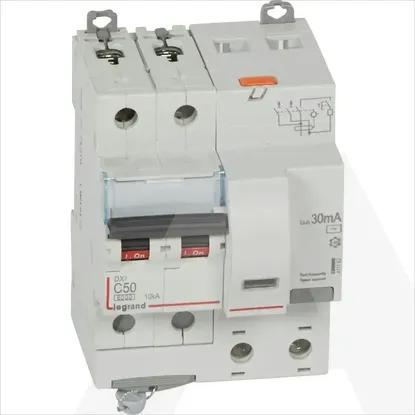

411163 | KZS DX3 2P C50 6KA AC 30MA 4M
