Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Frequency50 Hz
Leakage current typeAC
Over voltage category-
Built-in depth44mm
Ambient temperature during operating- - -°C
Number of protected poles2
Connectable conductor cross section multi-wired1 - 25mm²
With interlocking deviceYes
Connectable conductor cross section solid-core1 - 35mm²
Rated current16A
Release characteristicC
Rated fault current0.3A
Suitable for flush-mounted installationYes
Current limiting class3
Degree of protection (IP)IP20
Rated short-circuit breaking capacity according to IEC 60947-210kA
Width in number of modular spacings4
Concurrently switching neutral conductorYes
Rated voltage230V
Number of poles (total)2
Anti-nuisance tripping versionNo
Pollution degree2
Surge current capacity0.25kA
Rated insulation voltage Ui-V
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Rated impulse withstand voltage Uimp-kV
Rated short-circuit breaking capacity according to EN 610096kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

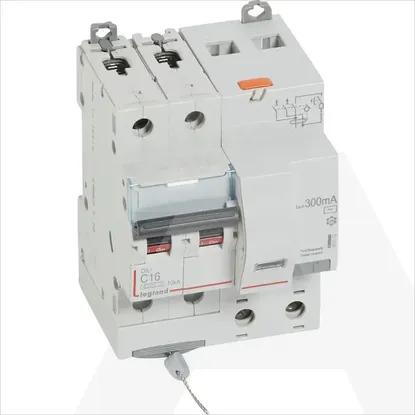

411172 | KZS DX3 2P C16 6KA AC 300MA 4M
