Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Rated insulation voltage Ui-V
Voltage typeAC
Leakage current typeAC
Rated voltage230V
Built-in depth44mm
Release characteristicC
Rated fault current0.3A
Rated current25A
Width in number of modular spacings4
Frequency50 Hz
Pollution degree2
Surge current capacity0.25kA
Over voltage category-
Current limiting class3
Concurrently switching neutral conductorYes
Number of poles (total)2
Rated short-circuit breaking capacity according to IEC 60947-210kA
Connectable conductor cross section solid-core1 - 35mm²
Connectable conductor cross section multi-wired1 - 25mm²
Suitable for flush-mounted installationYes
Degree of protection (IP)IP20
Number of protected poles2
Ambient temperature during operating- - -°C
With interlocking deviceYes
Anti-nuisance tripping versionNo
Rated short-circuit breaking capacity according to EN 610096kA
Rated impulse withstand voltage Uimp-kV
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

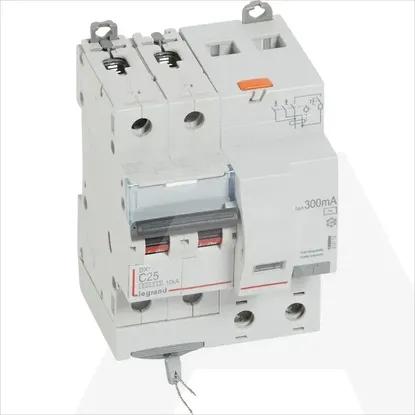

411174 | KZS DX3 2P C25 6KA AC 300MA 4M
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Earth leakage circuit breaker
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Rated insulation voltage Ui
-V
Voltage type
AC
Leakage current type
AC
Rated voltage
230V
Built-in depth
44mm
Release characteristic
C
Rated fault current
0.3A
Rated current
25A
Width in number of modular spacings
4
Frequency
50 Hz
Pollution degree
2
Surge current capacity
0.25kA
Over voltage category
-
Current limiting class
3
Concurrently switching neutral conductor
Number of poles (total)
2
Rated short-circuit breaking capacity according to IEC 60947-2
10kA
Connectable conductor cross section solid-core
1 .. 35mm²
Connectable conductor cross section multi-wired
1 .. 25mm²
Suitable for flush-mounted installation
Degree of protection (IP)
IP20
Number of protected poles
2
Ambient temperature during operating
- .. -°C
With interlocking device
Anti-nuisance tripping version
Rated short-circuit breaking capacity according to EN 61009
6kA
Rated impulse withstand voltage Uimp
-kV
Rated short-circuit breaking capacity Icn according to EN 61009-1
6kA
