Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Rated current40A
Built-in depth44mm
Rated voltage230V
Voltage typeAC
Current limiting class3
Surge current capacity0.25kA
Rated insulation voltage Ui-V
Release characteristicC
Leakage current typeAC
Rated fault current0.3A
Over voltage category-
Rated short-circuit breaking capacity according to IEC 60947-210kA
Degree of protection (IP)IP20
Concurrently switching neutral conductorYes
Number of protected poles2
Suitable for flush-mounted installationYes
Width in number of modular spacings4
Frequency50 Hz
Connectable conductor cross section solid-core1 - 35mm²
Pollution degree2
Anti-nuisance tripping versionNo
Connectable conductor cross section multi-wired1 - 25mm²
Ambient temperature during operating- - -°C
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Number of poles (total)2
With interlocking deviceYes
Rated short-circuit breaking capacity according to EN 610096kA
Rated impulse withstand voltage Uimp-kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

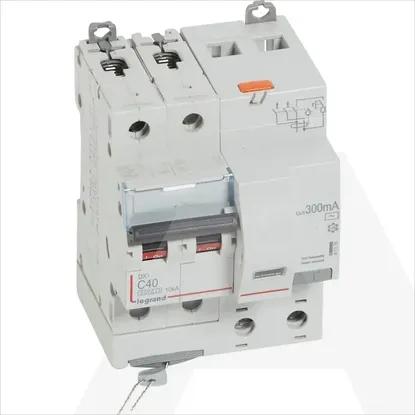

411176 | KZS DX3 2P C40 6KA AC 300MA 4M
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Earth leakage circuit breaker
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Rated current
40A
Built-in depth
44mm
Rated voltage
230V
Voltage type
AC
Current limiting class
3
Surge current capacity
0.25kA
Rated insulation voltage Ui
-V
Release characteristic
C
Leakage current type
AC
Rated fault current
0.3A
Over voltage category
-
Rated short-circuit breaking capacity according to IEC 60947-2
10kA
Degree of protection (IP)
IP20
Concurrently switching neutral conductor
Number of protected poles
2
Suitable for flush-mounted installation
Width in number of modular spacings
4
Frequency
50 Hz
Connectable conductor cross section solid-core
1 .. 35mm²
Pollution degree
2
Anti-nuisance tripping version
Connectable conductor cross section multi-wired
1 .. 25mm²
Ambient temperature during operating
- .. -°C
Rated short-circuit breaking capacity Icn according to EN 61009-1
6kA
Number of poles (total)
2
With interlocking device
Rated short-circuit breaking capacity according to EN 61009
6kA
Rated impulse withstand voltage Uimp
-kV
