Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Over voltage category-
Degree of protection (IP)IP20
Built-in depth44mm
Pollution degree2
Surge current capacity0.25kA
Rated insulation voltage Ui-V
Voltage typeAC
Frequency50 Hz
Rated voltage230V
Rated current50A
Leakage current typeAC
Rated fault current0.3A
Current limiting class3
Release characteristicC
Width in number of modular spacings4
Number of protected poles2
Connectable conductor cross section multi-wired1 - 25mm²
Ambient temperature during operating- - -°C
Rated short-circuit breaking capacity according to EN 610096kA
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Suitable for flush-mounted installationYes
Number of poles (total)2
With interlocking deviceYes
Rated short-circuit breaking capacity according to IEC 60947-210kA
Connectable conductor cross section solid-core1 - 35mm²
Rated impulse withstand voltage Uimp-kV
Concurrently switching neutral conductorYes
Anti-nuisance tripping versionNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

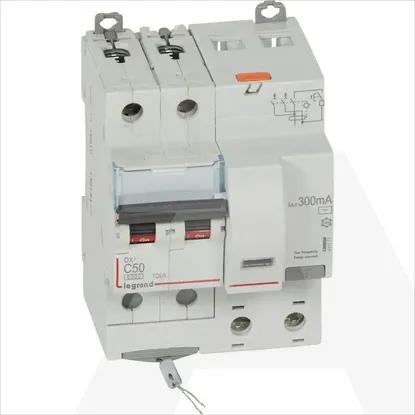

411177 | KZS DX3 2P C50 6KA AC 300MA 4M
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Earth leakage circuit breaker
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Over voltage category
-
Degree of protection (IP)
IP20
Built-in depth
44mm
Pollution degree
2
Surge current capacity
0.25kA
Rated insulation voltage Ui
-V
Voltage type
AC
Frequency
50 Hz
Rated voltage
230V
Rated current
50A
Leakage current type
AC
Rated fault current
0.3A
Current limiting class
3
Release characteristic
C
Width in number of modular spacings
4
Number of protected poles
2
Connectable conductor cross section multi-wired
1 .. 25mm²
Ambient temperature during operating
- .. -°C
Rated short-circuit breaking capacity according to EN 61009
6kA
Rated short-circuit breaking capacity Icn according to EN 61009-1
6kA
Suitable for flush-mounted installation
Number of poles (total)
2
With interlocking device
Rated short-circuit breaking capacity according to IEC 60947-2
10kA
Connectable conductor cross section solid-core
1 .. 35mm²
Rated impulse withstand voltage Uimp
-kV
Concurrently switching neutral conductor
Anti-nuisance tripping version
