Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Release characteristicC
Leakage current typeAC
Built-in depth44mm
Rated fault current0.03A
Rated current10A
Rated insulation voltage Ui-V
Rated voltage400V
Number of protected poles4
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Frequency50 Hz
With interlocking deviceYes
Rated short-circuit breaking capacity according to EN 610096kA
Width in number of modular spacings4
Over voltage category-
Anti-nuisance tripping versionNo
Connectable conductor cross section multi-wired- - -mm²
Number of poles (total)4
Suitable for flush-mounted installationYes
Rated impulse withstand voltage Uimp-kV
Rated short-circuit breaking capacity according to IEC 60947-210kA
Pollution degree2
Connectable conductor cross section solid-core- - -mm²
Concurrently switching neutral conductorYes
Ambient temperature during operating- - -°C
Current limiting class3
Surge current capacity0.25kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

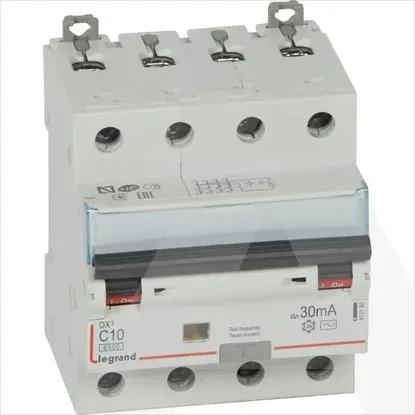

411185 | KZS DX3 4P C10 6KA AC 30MA 4M
