Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Release characteristicC
Rated current16A
Built-in depth44mm
Rated voltage400V
Rated insulation voltage Ui-V
Surge current capacity0.25kA
Leakage current typeAC
Number of poles (total)4
With interlocking deviceYes
Degree of protection (IP)IP20
Rated fault current0.03A
Number of protected poles4
Rated short-circuit breaking capacity according to IEC 60947-210kA
Current limiting class3
Frequency50 Hz
Anti-nuisance tripping versionNo
Suitable for flush-mounted installationYes
Concurrently switching neutral conductorYes
Rated impulse withstand voltage Uimp-kV
Pollution degree2
Over voltage category-
Width in number of modular spacings4
Connectable conductor cross section solid-core- - -mm²
Connectable conductor cross section multi-wired- - -mm²
Ambient temperature during operating- - -°C
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Rated short-circuit breaking capacity according to EN 610096kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

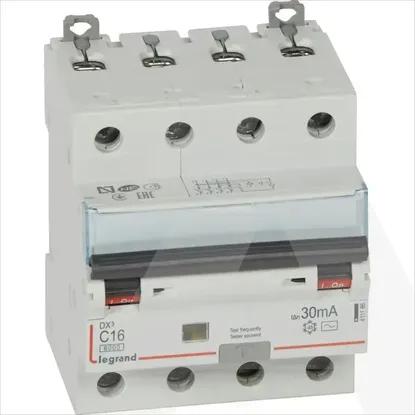

411186 | KZS DX3 4P C16 6KA AC 30MA 4M
