Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Rated fault current0.03A
Rated current20A
Release characteristicC
Surge current capacity0.25kA
Rated voltage400V
Leakage current typeAC
Rated insulation voltage Ui-V
Built-in depth44mm
Degree of protection (IP)IP20
Number of protected poles4
Current limiting class3
Concurrently switching neutral conductorYes
Width in number of modular spacings4
Frequency50 Hz
Pollution degree2
Over voltage category-
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Connectable conductor cross section multi-wired- - -mm²
Ambient temperature during operating- - -°C
Rated short-circuit breaking capacity according to IEC 60947-210kA
Suitable for flush-mounted installationYes
Rated short-circuit breaking capacity according to EN 610096kA
Rated impulse withstand voltage Uimp-kV
Anti-nuisance tripping versionNo
With interlocking deviceYes
Connectable conductor cross section solid-core- - -mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

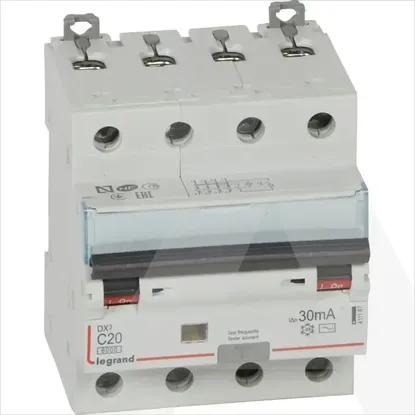

411187 | KZS DX3 4P C20 6KA AC 30MA 4M
