Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Release characteristicC
Voltage typeAC
Rated current25A
Rated insulation voltage Ui-V
Leakage current typeAC
Rated fault current0.03A
Surge current capacity0.25kA
Rated voltage400V
Built-in depth44mm
Frequency50 Hz
Width in number of modular spacings4
Over voltage category-
Pollution degree2
Current limiting class1
Number of protected poles4
Suitable for flush-mounted installationYes
Concurrently switching neutral conductorYes
Connectable conductor cross section multi-wired- - -mm²
Rated short-circuit breaking capacity according to EN 610096kA
Anti-nuisance tripping versionNo
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Degree of protection (IP)IP20
Ambient temperature during operating- - -°C
Connectable conductor cross section solid-core- - -mm²
Number of poles (total)4
Rated impulse withstand voltage Uimp-kV
With interlocking deviceYes
Rated short-circuit breaking capacity according to IEC 60947-210kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

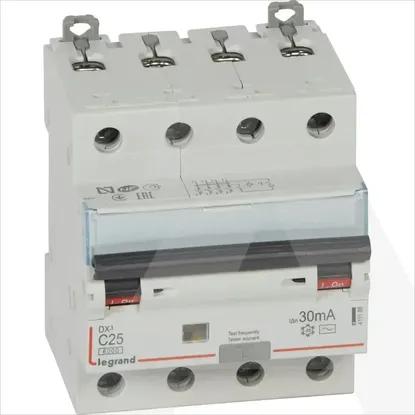

411188 | KZS DX3 4P C25 6KA AC 30MA 4M
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Earth leakage circuit breaker
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Release characteristic
C
Voltage type
AC
Rated current
25A
Rated insulation voltage Ui
-V
Leakage current type
AC
Rated fault current
0.03A
Surge current capacity
0.25kA
Rated voltage
400V
Built-in depth
44mm
Frequency
50 Hz
Width in number of modular spacings
4
Over voltage category
-
Pollution degree
2
Current limiting class
1
Number of protected poles
4
Suitable for flush-mounted installation
Concurrently switching neutral conductor
Connectable conductor cross section multi-wired
- .. -mm²
Rated short-circuit breaking capacity according to EN 61009
6kA
Anti-nuisance tripping version
Rated short-circuit breaking capacity Icn according to EN 61009-1
6kA
Degree of protection (IP)
IP20
Ambient temperature during operating
- .. -°C
Connectable conductor cross section solid-core
- .. -mm²
Number of poles (total)
4
Rated impulse withstand voltage Uimp
-kV
With interlocking device
Rated short-circuit breaking capacity according to IEC 60947-2
10kA
