Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Rated current50A
Over voltage category-
Degree of protection (IP)IP20
Voltage typeAC
Number of protected poles4
Built-in depth44mm
Leakage current typeAC
Release characteristicC
Pollution degree2
Rated insulation voltage Ui-V
Rated fault current0.03A
Rated voltage400V
Width in number of modular spacings7
Current limiting class3
Frequency50 Hz
Surge current capacity0.25kA
Concurrently switching neutral conductorYes
Rated short-circuit breaking capacity according to IEC 60947-210kA
Suitable for flush-mounted installationYes
Connectable conductor cross section multi-wired1 - 25mm²
Rated impulse withstand voltage Uimp-kV
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
With interlocking deviceYes
Number of poles (total)4
Rated short-circuit breaking capacity according to EN 610096kA
Anti-nuisance tripping versionNo
Connectable conductor cross section solid-core1 - 35mm²
Ambient temperature during operating- - -°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

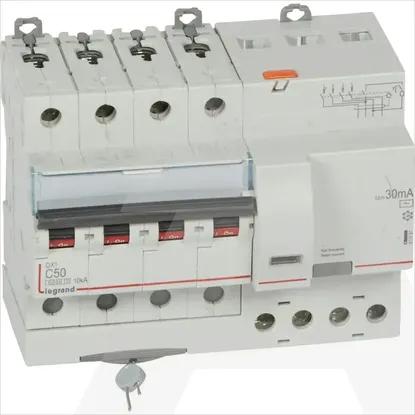

411191 | KZS DX3 4P C50 6KA AC 30MA 7M
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Earth leakage circuit breaker
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Rated current
50A
Over voltage category
-
Degree of protection (IP)
IP20
Voltage type
AC
Number of protected poles
4
Built-in depth
44mm
Leakage current type
AC
Release characteristic
C
Pollution degree
2
Rated insulation voltage Ui
-V
Rated fault current
0.03A
Rated voltage
400V
Width in number of modular spacings
7
Current limiting class
3
Frequency
50 Hz
Surge current capacity
0.25kA
Concurrently switching neutral conductor
Rated short-circuit breaking capacity according to IEC 60947-2
10kA
Suitable for flush-mounted installation
Connectable conductor cross section multi-wired
1 .. 25mm²
Rated impulse withstand voltage Uimp
-kV
Rated short-circuit breaking capacity Icn according to EN 61009-1
6kA
With interlocking device
Number of poles (total)
4
Rated short-circuit breaking capacity according to EN 61009
6kA
Anti-nuisance tripping version
Connectable conductor cross section solid-core
1 .. 35mm²
Ambient temperature during operating
- .. -°C
