Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Built-in depth44mm
Rated current63A
Voltage typeAC
Release characteristicC
Rated voltage400V
Leakage current typeAC
Current limiting class3
Rated insulation voltage Ui-V
Rated fault current0.03A
Surge current capacity0.25kA
Degree of protection (IP)IP20
Number of protected poles4
Over voltage category-
Concurrently switching neutral conductorYes
Frequency50 Hz
Width in number of modular spacings7
Pollution degree2
Connectable conductor cross section multi-wired1 - 25mm²
Number of poles (total)4
Rated short-circuit breaking capacity according to IEC 60947-210kA
Connectable conductor cross section solid-core1 - 35mm²
Ambient temperature during operating- - -°C
Suitable for flush-mounted installationYes
With interlocking deviceYes
Anti-nuisance tripping versionNo
Rated impulse withstand voltage Uimp-kV
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Rated short-circuit breaking capacity according to EN 610096kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

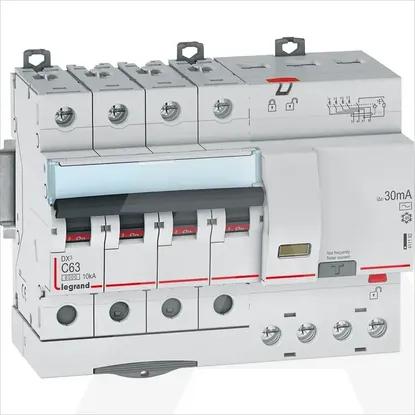

411192 | KZS DX3 4P C63 6KA AC 30MA 7M
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Earth leakage circuit breaker
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Built-in depth
44mm
Rated current
63A
Voltage type
AC
Release characteristic
C
Rated voltage
400V
Leakage current type
AC
Current limiting class
3
Rated insulation voltage Ui
-V
Rated fault current
0.03A
Surge current capacity
0.25kA
Degree of protection (IP)
IP20
Number of protected poles
4
Over voltage category
-
Concurrently switching neutral conductor
Frequency
50 Hz
Width in number of modular spacings
7
Pollution degree
2
Connectable conductor cross section multi-wired
1 .. 25mm²
Number of poles (total)
4
Rated short-circuit breaking capacity according to IEC 60947-2
10kA
Connectable conductor cross section solid-core
1 .. 35mm²
Ambient temperature during operating
- .. -°C
Suitable for flush-mounted installation
With interlocking device
Anti-nuisance tripping version
Rated impulse withstand voltage Uimp
-kV
Rated short-circuit breaking capacity Icn according to EN 61009-1
6kA
Rated short-circuit breaking capacity according to EN 61009
6kA
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
