Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Built-in depth44mm
Surge current capacity0.25kA
Release characteristicC
Rated fault current0.3A
Leakage current typeAC
Rated voltage400V
Voltage typeAC
Rated insulation voltage Ui-V
Rated current10A
Frequency50 Hz
Current limiting class3
Width in number of modular spacings4
Pollution degree2
Over voltage category-
Degree of protection (IP)IP20
Number of protected poles4
Anti-nuisance tripping versionNo
Connectable conductor cross section multi-wired- - -mm²
Concurrently switching neutral conductorYes
Connectable conductor cross section solid-core- - -mm²
Suitable for flush-mounted installationYes
Rated short-circuit breaking capacity according to IEC 60947-210kA
With interlocking deviceYes
Ambient temperature during operating- - -°C
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Rated short-circuit breaking capacity according to EN 610096kA
Rated impulse withstand voltage Uimp-kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

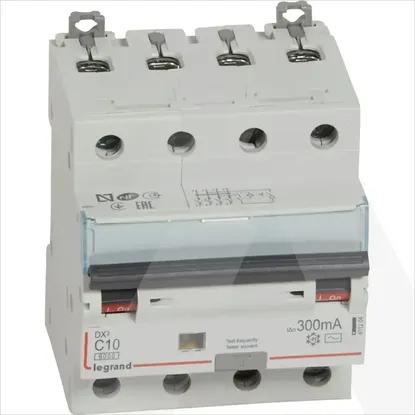

411204 | KZS DX3 4P C10 6KA AC 300MA 4M
