Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Rated current20A
Voltage typeAC
Rated insulation voltage Ui-V
Built-in depth44mm
Rated voltage400V
Release characteristicC
Rated fault current0.3A
Frequency50 Hz
Current limiting class3
Over voltage category-
Degree of protection (IP)IP20
Number of protected poles4
Width in number of modular spacings4
Pollution degree2
Concurrently switching neutral conductorYes
Surge current capacity0.25kA
Leakage current typeAC
Rated impulse withstand voltage Uimp-kV
With interlocking deviceYes
Ambient temperature during operating- - -°C
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Suitable for flush-mounted installationYes
Anti-nuisance tripping versionNo
Number of poles (total)4
Connectable conductor cross section multi-wired- - -mm²
Connectable conductor cross section solid-core- - -mm²
Rated short-circuit breaking capacity according to IEC 60947-210kA
Rated short-circuit breaking capacity according to EN 610096kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

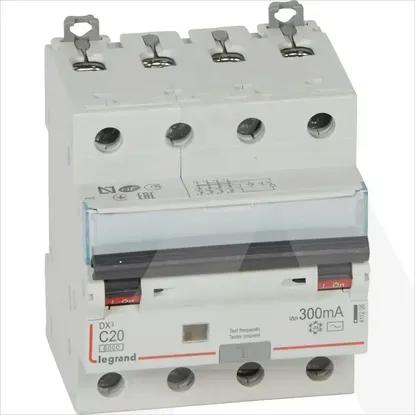

411206 | KZS DX3 4P C20 6KA AC 300MA 4M
