Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Release characteristicC
Rated insulation voltage Ui-V
Rated fault current0.3A
Voltage typeAC
Rated voltage400V
Built-in depth44mm
Rated current32A
Leakage current typeAC
Over voltage category-
Pollution degree2
Current limiting class1
Width in number of modular spacings4
Frequency50 Hz
Surge current capacity0.25kA
Connectable conductor cross section solid-core- - -mm²
Number of protected poles4
Rated impulse withstand voltage Uimp-kV
Rated short-circuit breaking capacity according to IEC 60947-210kA
Degree of protection (IP)IP20
Concurrently switching neutral conductorYes
Connectable conductor cross section multi-wired- - -mm²
Suitable for flush-mounted installationYes
Ambient temperature during operating- - -°C
Anti-nuisance tripping versionNo
With interlocking deviceYes
Rated short-circuit breaking capacity according to EN 610096kA
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

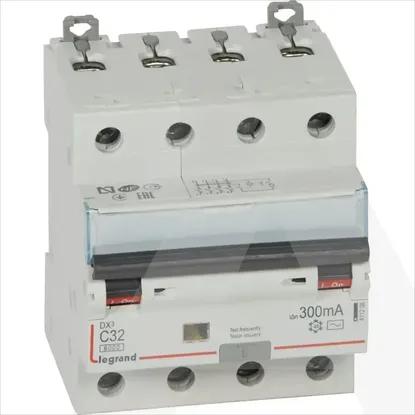

411208 | KZS DX3 4P C32 6KA AC 300MA 4M
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Earth leakage circuit breaker
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Release characteristic
C
Rated insulation voltage Ui
-V
Rated fault current
0.3A
Voltage type
AC
Rated voltage
400V
Built-in depth
44mm
Rated current
32A
Leakage current type
AC
Over voltage category
-
Pollution degree
2
Current limiting class
1
Width in number of modular spacings
4
Frequency
50 Hz
Surge current capacity
0.25kA
Connectable conductor cross section solid-core
- .. -mm²
Number of protected poles
4
Rated impulse withstand voltage Uimp
-kV
Rated short-circuit breaking capacity according to IEC 60947-2
10kA
Degree of protection (IP)
IP20
Concurrently switching neutral conductor
Connectable conductor cross section multi-wired
- .. -mm²
Suitable for flush-mounted installation
Ambient temperature during operating
- .. -°C
Anti-nuisance tripping version
With interlocking device
Rated short-circuit breaking capacity according to EN 61009
6kA
Number of poles (total)
4
Rated short-circuit breaking capacity Icn according to EN 61009-1
6kA
