Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Release characteristicC
Rated voltage400V
Built-in depth44mm
Rated current63A
Voltage typeAC
Current limiting class3
Rated insulation voltage Ui-V
Surge current capacity0.25kA
Over voltage category-
Rated short-circuit breaking capacity according to IEC 60947-210kA
Pollution degree2
Rated fault current0.3A
Leakage current typeAC
Concurrently switching neutral conductorYes
Frequency50 Hz
Degree of protection (IP)IP20
Suitable for flush-mounted installationYes
Number of protected poles4
Width in number of modular spacings7
Rated impulse withstand voltage Uimp-kV
Anti-nuisance tripping versionNo
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
With interlocking deviceYes
Ambient temperature during operating- - -°C
Rated short-circuit breaking capacity according to EN 610096kA
Connectable conductor cross section multi-wired1 - 25mm²
Connectable conductor cross section solid-core1 - 35mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

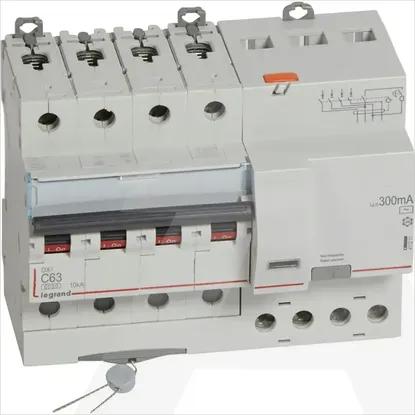

411211 | KZS DX3 4P C63 6KA AC 300MA 7M
