Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Width in number of modular spacings4
Release characteristicB
Rated current16A
Pollution degree2
Rated fault current0.03A
Rated insulation voltage Ui-V
Leakage current typeA
Frequency50 Hz
Built-in depth44mm
Rated voltage400V
Current limiting class1
Over voltage category-
Surge current capacity0.25kA
Number of protected poles4
Degree of protection (IP)IP20
Concurrently switching neutral conductorYes
Rated short-circuit breaking capacity according to IEC 60947-210kA
With interlocking deviceYes
Connectable conductor cross section solid-core- - -mm²
Suitable for flush-mounted installationYes
Ambient temperature during operating- - -°C
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Anti-nuisance tripping versionNo
Rated short-circuit breaking capacity according to EN 610096kA
Connectable conductor cross section multi-wired- - -mm²
Rated impulse withstand voltage Uimp-kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

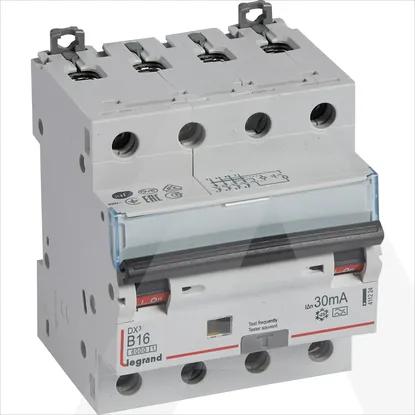

411224 | KZS DX3 4P B16 10KA A 30MA
