Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Rated voltage400V
Release characteristicB
Voltage typeAC
Rated current16A
Built-in depth44mm
Rated insulation voltage Ui-V
Over voltage category-
Rated fault current0.3A
Pollution degree2
Current limiting class1
Degree of protection (IP)IP20
Surge current capacity0.25kA
Width in number of modular spacings4
Frequency50 Hz
Leakage current typeA
Connectable conductor cross section solid-core- - -mm²
Connectable conductor cross section multi-wired- - -mm²
Concurrently switching neutral conductorYes
Suitable for flush-mounted installationYes
Rated short-circuit breaking capacity according to IEC 60947-210kA
Number of protected poles4
Rated impulse withstand voltage Uimp-kV
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
With interlocking deviceYes
Rated short-circuit breaking capacity according to EN 610096kA
Ambient temperature during operating- - -°C
Number of poles (total)4
Anti-nuisance tripping versionNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

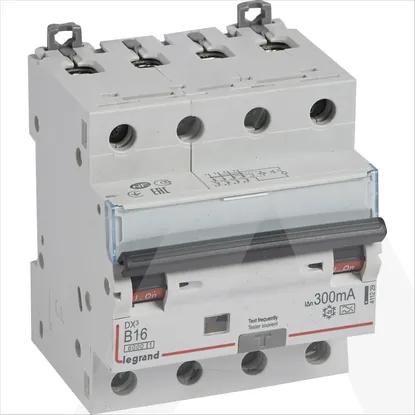

411229 | KZS DX3 4P B16 10KA A 300MA
