Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Release characteristicB
Leakage current typeA
Rated current20A
Rated voltage400V
Rated insulation voltage Ui-V
Surge current capacity0.25kA
Built-in depth44mm
Rated fault current0.3A
Number of poles (total)4
Pollution degree2
Ambient temperature during operating- - -°C
Frequency50 Hz
Over voltage category-
Connectable conductor cross section solid-core- - -mm²
Degree of protection (IP)IP20
Concurrently switching neutral conductorYes
Rated impulse withstand voltage Uimp-kV
With interlocking deviceYes
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Current limiting class1
Connectable conductor cross section multi-wired- - -mm²
Anti-nuisance tripping versionNo
Width in number of modular spacings4
Suitable for flush-mounted installationYes
Rated short-circuit breaking capacity according to IEC 60947-210kA
Number of protected poles4
Rated short-circuit breaking capacity according to EN 610096kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

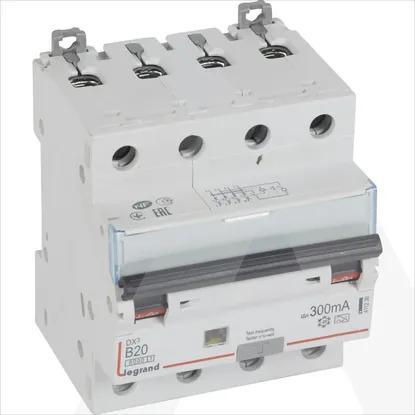

411230 | KZS DX3 4P B20 10KA A 300MA
