Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Release characteristicC
Voltage typeAC
Rated current10A
Rated voltage400V
Built-in depth44mm
Rated insulation voltage Ui-V
Leakage current typeA
Pollution degree2
Over voltage category-
Width in number of modular spacings4
Current limiting class3
Rated fault current0.03A
Degree of protection (IP)IP20
Frequency50 Hz
Surge current capacity0.25kA
Suitable for flush-mounted installationYes
Number of poles (total)4
With interlocking deviceYes
Ambient temperature during operating- - -°C
Concurrently switching neutral conductorYes
Number of protected poles4
Connectable conductor cross section multi-wired- - -mm²
Rated short-circuit breaking capacity according to IEC 60947-210kA
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Rated impulse withstand voltage Uimp-kV
Rated short-circuit breaking capacity according to EN 610096kA
Connectable conductor cross section solid-core- - -mm²
Anti-nuisance tripping versionNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

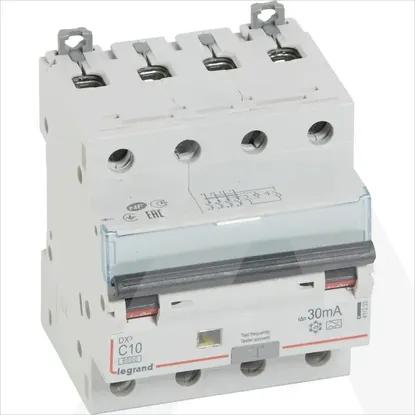

411233 | KZS DX3 4P C10 6KA A 30MA 4M
