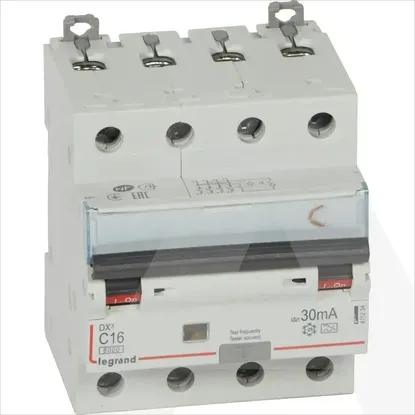

411234 | KZS DX3 4P C16 6KA a 30MA 4M
Code: 1778884
ManufacturerLegrand
Catalog number411234
TypeLegrand 411234
CategoryEarth leakage circuit breaker
EAN code3245064112345
Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Release characteristicC
Surge current capacity0.25kA
Number of protected poles4
Pollution degree2
Concurrently switching neutral conductorYes
Width in number of modular spacings4
With interlocking deviceYes
Over voltage category-
Rated voltage400V
Suitable for flush-mounted installationYes
Connectable conductor cross section solid-core- - -mm²
Degree of protection (IP)IP20
Rated short-circuit breaking capacity according to IEC 60947-210kA
Voltage typeAC
Built-in depth44mm
Connectable conductor cross section multi-wired- - -mm²
Frequency50 Hz
Rated insulation voltage Ui-V
Current limiting class3
Ambient temperature during operating- - -°C
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Anti-nuisance tripping versionNo
Rated short-circuit breaking capacity according to EN 610096kA
Rated impulse withstand voltage Uimp-kV
Rated current16A
Rated fault current0.03A
Leakage current typeA
Number of poles (total)4
