Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Release characteristicC
Rated voltage400V
Rated current20A
Rated insulation voltage Ui-V
Rated fault current0.03A
Voltage typeAC
Current limiting class3
Surge current capacity0.25kA
Built-in depth44mm
Leakage current typeA
Over voltage category-
Width in number of modular spacings4
Pollution degree2
Number of protected poles4
Connectable conductor cross section multi-wired- - -mm²
Connectable conductor cross section solid-core- - -mm²
Concurrently switching neutral conductorYes
Rated short-circuit breaking capacity according to IEC 60947-210kA
Degree of protection (IP)IP20
Ambient temperature during operating- - -°C
Number of poles (total)4
Suitable for flush-mounted installationYes
Rated short-circuit breaking capacity according to EN 610096kA
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Rated impulse withstand voltage Uimp-kV
With interlocking deviceYes
Frequency50 Hz
Anti-nuisance tripping versionNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

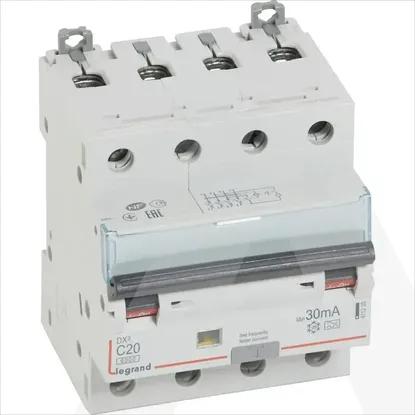

411235 | KZS DX3 4P C20 6KA A 30MA 4M
