Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Concurrently switching neutral conductorYes
Rated voltage400V
Rated current32A
Rated fault current0.03A
Rated insulation voltage Ui-V
Surge current capacity0.25kA
Suitable for flush-mounted installationYes
Leakage current typeA
Degree of protection (IP)IP20
Frequency50 Hz
Width in number of modular spacings4
Built-in depth44mm
Number of protected poles4
Release characteristicC
Connectable conductor cross section solid-core- - -mm²
Current limiting class1
Pollution degree2
Ambient temperature during operating- - -°C
Over voltage category-
Rated short-circuit breaking capacity according to IEC 60947-210kA
With interlocking deviceYes
Connectable conductor cross section multi-wired- - -mm²
Anti-nuisance tripping versionNo
Rated impulse withstand voltage Uimp-kV
Number of poles (total)4
Rated short-circuit breaking capacity according to EN 610096kA
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

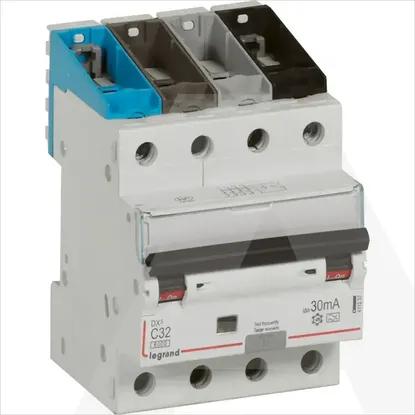

411237 | KZS DX3 4P C32 6KA A 30MA 4M
