Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Built-in depth44mm
Voltage typeAC
Rated fault current0.3A
Release characteristicC
Pollution degree2
Suitable for flush-mounted installationYes
Surge current capacity0.25kA
Degree of protection (IP)IP20
Number of poles (total)4
Current limiting class3
Leakage current typeA
Connectable conductor cross section multi-wired- - -mm²
With interlocking deviceYes
Rated current10A
Width in number of modular spacings4
Connectable conductor cross section solid-core- - -mm²
Frequency50 Hz
Rated voltage400V
Rated short-circuit breaking capacity according to IEC 60947-210kA
Number of protected poles4
Concurrently switching neutral conductorYes
Over voltage category-
Rated insulation voltage Ui-V
Ambient temperature during operating- - -°C
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Rated impulse withstand voltage Uimp-kV
Anti-nuisance tripping versionNo
Rated short-circuit breaking capacity according to EN 610096kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

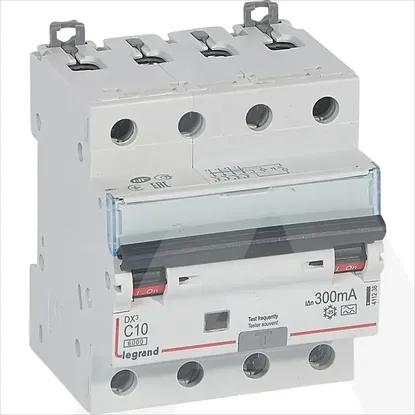

411238 | KZS DX3 4P C10 6KA A 300MA 4M
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Earth leakage circuit breaker
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Built-in depth
44mm
Voltage type
AC
Rated fault current
0.3A
Release characteristic
C
Pollution degree
2
Suitable for flush-mounted installation
Surge current capacity
0.25kA
Degree of protection (IP)
IP20
Number of poles (total)
4
Current limiting class
3
Leakage current type
A
Connectable conductor cross section multi-wired
- .. -mm²
With interlocking device
Rated current
10A
Width in number of modular spacings
4
Connectable conductor cross section solid-core
- .. -mm²
Frequency
50 Hz
Rated voltage
400V
Rated short-circuit breaking capacity according to IEC 60947-2
10kA
Number of protected poles
4
Concurrently switching neutral conductor
Over voltage category
-
Rated insulation voltage Ui
-V
Ambient temperature during operating
- .. -°C
Rated short-circuit breaking capacity Icn according to EN 61009-1
6kA
Rated impulse withstand voltage Uimp
-kV
Anti-nuisance tripping version
Rated short-circuit breaking capacity according to EN 61009
6kA
