Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Current limiting class3
Rated voltage400V
Voltage typeAC
Release characteristicC
Rated current20A
Rated insulation voltage Ui-V
Leakage current typeA
Built-in depth44mm
Over voltage category-
Surge current capacity0.25kA
Rated fault current0.3A
Concurrently switching neutral conductorYes
Pollution degree2
Degree of protection (IP)IP20
Number of protected poles4
Frequency50 Hz
Width in number of modular spacings4
Rated short-circuit breaking capacity according to IEC 60947-210kA
Rated short-circuit breaking capacity according to EN 610096kA
Ambient temperature during operating- - -°C
Connectable conductor cross section multi-wired- - -mm²
With interlocking deviceYes
Anti-nuisance tripping versionNo
Suitable for flush-mounted installationYes
Number of poles (total)4
Rated impulse withstand voltage Uimp-kV
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Connectable conductor cross section solid-core- - -mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

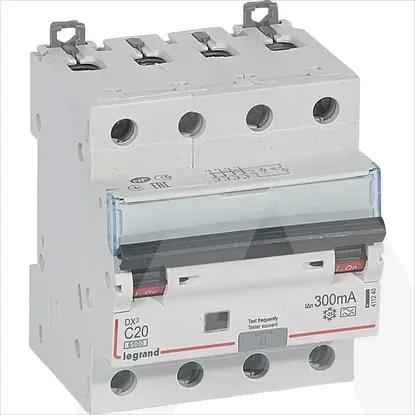

411240 | KZS DX3 4P C20 6KA A 300MA 4M
