Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Rated voltage400V
Surge current capacity0.25kA
Current limiting class1
Rated insulation voltage Ui-V
Built-in depth44mm
Rated fault current0.3A
Leakage current typeA
Release characteristicC
Rated current25A
Voltage typeAC
Over voltage category-
Connectable conductor cross section solid-core- - -mm²
Degree of protection (IP)IP20
Rated short-circuit breaking capacity according to IEC 60947-210kA
Frequency50 Hz
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Connectable conductor cross section multi-wired- - -mm²
Anti-nuisance tripping versionNo
Concurrently switching neutral conductorYes
Number of protected poles4
Number of poles (total)4
Rated short-circuit breaking capacity according to EN 610096kA
With interlocking deviceYes
Pollution degree2
Rated impulse withstand voltage Uimp-kV
Width in number of modular spacings4
Ambient temperature during operating- - -°C
Suitable for flush-mounted installationYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

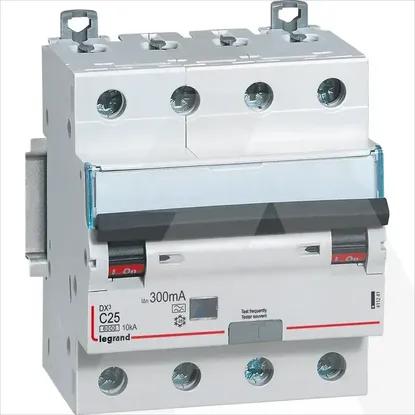

411241 | KZS DX3 4P C25 6KA A 300MA 4M
