Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Release characteristicC
Rated voltage400V
Rated fault current0.3A
Rated current32A
Rated insulation voltage Ui-V
Built-in depth44mm
Over voltage category-
Pollution degree2
Degree of protection (IP)IP20
Surge current capacity0.25kA
Leakage current typeA
Connectable conductor cross section solid-core- - -mm²
Concurrently switching neutral conductorYes
With interlocking deviceYes
Connectable conductor cross section multi-wired- - -mm²
Rated short-circuit breaking capacity according to IEC 60947-210kA
Number of protected poles4
Ambient temperature during operating- - -°C
Width in number of modular spacings4
Suitable for flush-mounted installationYes
Frequency50 Hz
Current limiting class1
Number of poles (total)4
Rated impulse withstand voltage Uimp-kV
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Anti-nuisance tripping versionNo
Rated short-circuit breaking capacity according to EN 610096kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

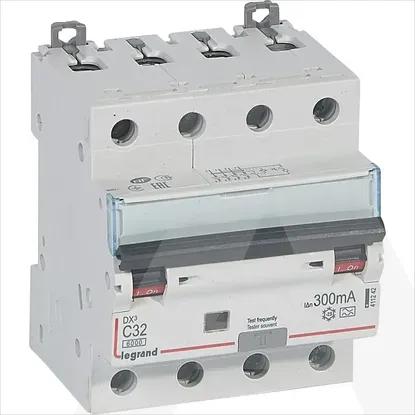

411242 | KZS DX3 4P C32 6KA A 300MA 4M
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Earth leakage circuit breaker
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Voltage type
AC
Release characteristic
C
Rated voltage
400V
Rated fault current
0.3A
Rated current
32A
Rated insulation voltage Ui
-V
Built-in depth
44mm
Over voltage category
-
Pollution degree
2
Degree of protection (IP)
IP20
Surge current capacity
0.25kA
Leakage current type
A
Connectable conductor cross section solid-core
- .. -mm²
Concurrently switching neutral conductor
With interlocking device
Connectable conductor cross section multi-wired
- .. -mm²
Rated short-circuit breaking capacity according to IEC 60947-2
10kA
Number of protected poles
4
Ambient temperature during operating
- .. -°C
Width in number of modular spacings
4
Suitable for flush-mounted installation
Frequency
50 Hz
Current limiting class
1
Number of poles (total)
4
Rated impulse withstand voltage Uimp
-kV
Rated short-circuit breaking capacity Icn according to EN 61009-1
6kA
Anti-nuisance tripping version
Rated short-circuit breaking capacity according to EN 61009
6kA
