Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Built-in depth44mm
Voltage typeAC
Rated insulation voltage Ui-V
Rated voltage400V
Rated current16A
Rated fault current0.03A
Release characteristicC
Width in number of modular spacings4
Pollution degree2
Surge current capacity3kA
Current limiting class3
Over voltage category-
Leakage current typeF
Suitable for flush-mounted installationYes
Frequency50 Hz
Rated short-circuit breaking capacity according to IEC 60947-210kA
Number of protected poles4
Ambient temperature during operating- - -°C
Connectable conductor cross section multi-wired- - -mm²
With interlocking deviceYes
Connectable conductor cross section solid-core- - -mm²
Concurrently switching neutral conductorYes
Rated impulse withstand voltage Uimp-kV
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Rated short-circuit breaking capacity according to EN 610096kA
Anti-nuisance tripping versionYes
Degree of protection (IP)IP20
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

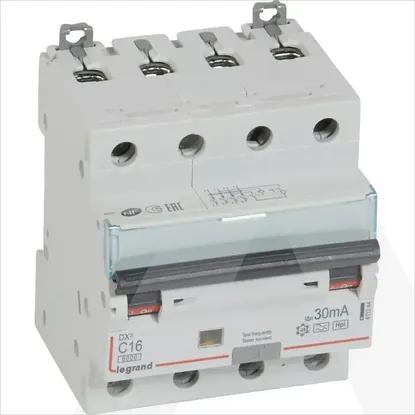

411244 | DX3 KZS 4P C16 HPI 30MA 4M
