Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Built-in depth44mm
Rated voltage400V
Rated insulation voltage Ui-V
Release characteristicC
Leakage current typeF
Rated current20A
Surge current capacity3kA
Rated fault current0.03A
Current limiting class3
Over voltage category-
Rated impulse withstand voltage Uimp-kV
Frequency50 Hz
Width in number of modular spacings4
Degree of protection (IP)IP20
Ambient temperature during operating- - -°C
With interlocking deviceYes
Rated short-circuit breaking capacity according to IEC 60947-210kA
Number of poles (total)4
Pollution degree2
Anti-nuisance tripping versionYes
Number of protected poles4
Suitable for flush-mounted installationYes
Connectable conductor cross section multi-wired- - -mm²
Connectable conductor cross section solid-core- - -mm²
Concurrently switching neutral conductorYes
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Rated short-circuit breaking capacity according to EN 610096kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

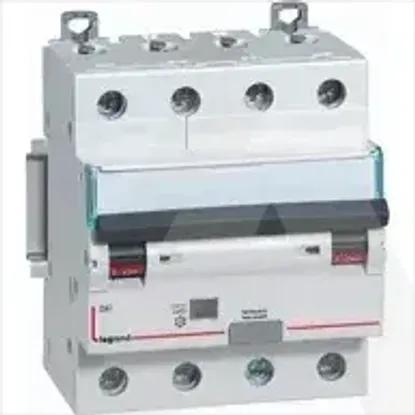

411245 | DX3 KZS 4P C20 HPI 30MA 4M
