Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Built-in depth44mm
Voltage typeAC
Rated current25A
Rated fault current0.03A
Surge current capacity3kA
Over voltage category-
Rated voltage400V
Leakage current typeF
Release characteristicC
Current limiting class1
Rated insulation voltage Ui-V
Pollution degree2
With interlocking deviceYes
Degree of protection (IP)IP20
Suitable for flush-mounted installationYes
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Frequency50 Hz
Rated short-circuit breaking capacity according to IEC 60947-210kA
Number of protected poles4
Connectable conductor cross section multi-wired- - -mm²
Ambient temperature during operating- - -°C
Concurrently switching neutral conductorYes
Anti-nuisance tripping versionYes
Number of poles (total)4
Rated impulse withstand voltage Uimp-kV
Connectable conductor cross section solid-core- - -mm²
Width in number of modular spacings4
Rated short-circuit breaking capacity according to EN 610096kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

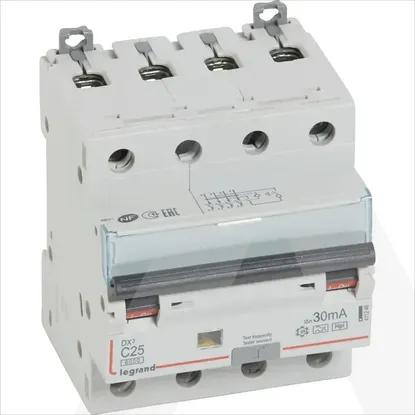

411246 | DX3 KZS 4P C25 HPI 30MA 4M
