Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Anti-nuisance tripping versionYes
Ambient temperature during operating- - -°C
Number of poles (total)4
Leakage current typeF
Concurrently switching neutral conductorYes
Suitable for flush-mounted installationYes
Rated short-circuit breaking capacity according to IEC 60947-210kA
Rated current32A
Built-in depth44mm
Release characteristicC
Surge current capacity3kA
Degree of protection (IP)IP20
Pollution degree2
Over voltage category-
Rated voltage400V
Rated fault current0.03A
Rated insulation voltage Ui-V
Connectable conductor cross section multi-wired- - -mm²
With interlocking deviceYes
Width in number of modular spacings4
Frequency50 Hz
Connectable conductor cross section solid-core- - -mm²
Number of protected poles4
Current limiting class1
Rated impulse withstand voltage Uimp-kV
Rated short-circuit breaking capacity according to EN 610096kA
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

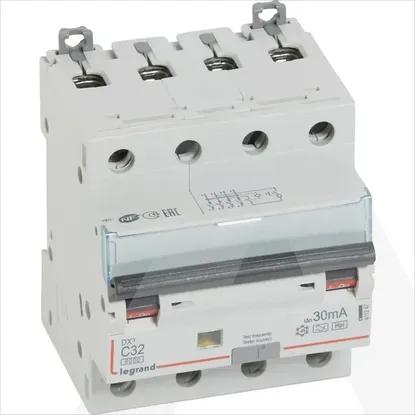

411247 | DX3 KZS 4P C32 HPI 30MA 4M
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Earth leakage circuit breaker
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Voltage type
AC
Anti-nuisance tripping version
Ambient temperature during operating
- .. -°C
Number of poles (total)
4
Leakage current type
F
Concurrently switching neutral conductor
Suitable for flush-mounted installation
Rated short-circuit breaking capacity according to IEC 60947-2
10kA
Rated current
32A
Built-in depth
44mm
Release characteristic
C
Surge current capacity
3kA
Degree of protection (IP)
IP20
Pollution degree
2
Over voltage category
-
Rated voltage
400V
Rated fault current
0.03A
Rated insulation voltage Ui
-V
Connectable conductor cross section multi-wired
- .. -mm²
With interlocking device
Width in number of modular spacings
4
Frequency
50 Hz
Connectable conductor cross section solid-core
- .. -mm²
Number of protected poles
4
Current limiting class
1
Rated impulse withstand voltage Uimp
-kV
Rated short-circuit breaking capacity according to EN 61009
6kA
Rated short-circuit breaking capacity Icn according to EN 61009-1
6kA
