Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Built-in depth44mm
Rated insulation voltage Ui-V
Voltage typeAC
Release characteristicB
Rated current6A
Rated voltage230V
Current limiting class3
Frequency50 Hz
Degree of protection (IP)IP20
Rated short-circuit breaking capacity according to IEC 60947-210kA
Connectable conductor cross section multi-wired0.75 - 10mm²
Pollution degree2
Over voltage category-
Leakage current typeA
Width in number of modular spacings4
Connectable conductor cross section solid-core0.75 - 16mm²
Suitable for flush-mounted installationYes
Concurrently switching neutral conductorYes
Surge current capacity0.25kA
With interlocking deviceYes
Number of protected poles1
Ambient temperature during operating- - -°C
Number of poles (total)2
Rated short-circuit breaking capacity according to EN 6100910kA
Rated impulse withstand voltage Uimp-kV
Anti-nuisance tripping versionNo
Rated short-circuit breaking capacity Icn according to EN 61009-110kA
Rated fault current0.03A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

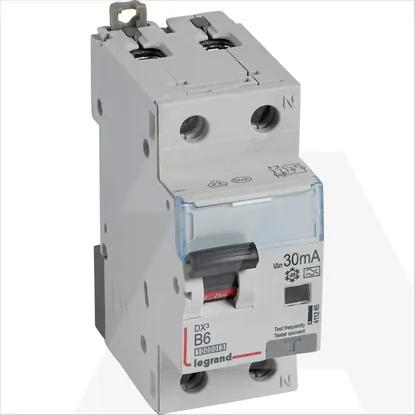

411285 | KZS DX3 1P+N B6 10KA A 30MA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Earth leakage circuit breaker
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Built-in depth
44mm
Rated insulation voltage Ui
-V
Voltage type
AC
Release characteristic
B
Rated current
6A
Rated voltage
230V
Current limiting class
3
Frequency
50 Hz
Degree of protection (IP)
IP20
Rated short-circuit breaking capacity according to IEC 60947-2
10kA
Connectable conductor cross section multi-wired
0.75 .. 10mm²
Pollution degree
2
Over voltage category
-
Leakage current type
A
Width in number of modular spacings
4
Connectable conductor cross section solid-core
0.75 .. 16mm²
Suitable for flush-mounted installation
Concurrently switching neutral conductor
Surge current capacity
0.25kA
With interlocking device
Number of protected poles
1
Ambient temperature during operating
- .. -°C
Number of poles (total)
2
Rated short-circuit breaking capacity according to EN 61009
10kA
Rated impulse withstand voltage Uimp
-kV
Anti-nuisance tripping version
Rated short-circuit breaking capacity Icn according to EN 61009-1
10kA
Rated fault current
0.03A
