Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Rated insulation voltage Ui-V
Rated voltage230V
Leakage current typeA
Surge current capacity0.25kA
Rated fault current0.03A
Rated current10A
Release characteristicB
Built-in depth44mm
Current limiting class3
Over voltage category-
Frequency50 Hz
Connectable conductor cross section multi-wired0.75 - 10mm²
Degree of protection (IP)IP20
Ambient temperature during operating- - -°C
Width in number of modular spacings4
Rated short-circuit breaking capacity according to IEC 60947-210kA
Concurrently switching neutral conductorYes
Number of protected poles1
Anti-nuisance tripping versionNo
Connectable conductor cross section solid-core0.75 - 16mm²
Rated impulse withstand voltage Uimp-kV
Number of poles (total)2
With interlocking deviceYes
Rated short-circuit breaking capacity Icn according to EN 61009-110kA
Suitable for flush-mounted installationYes
Pollution degree2
Rated short-circuit breaking capacity according to EN 6100910kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

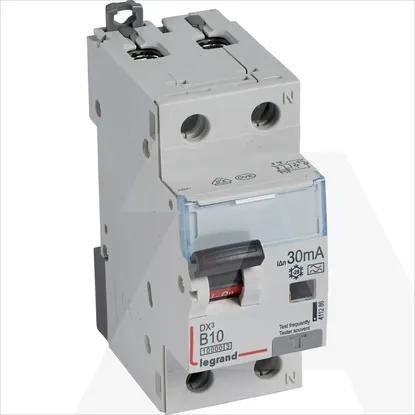

411286 | KZS DX3 1P+N B10 10KA A 30MA
