Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Release characteristicB
Rated current20A
Voltage typeAC
Rated insulation voltage Ui-V
Rated voltage230V
Built-in depth44mm
Over voltage category-
Surge current capacity0.25kA
Frequency50 Hz
Current limiting class3
Width in number of modular spacings4
Leakage current typeA
Pollution degree2
Rated fault current0.03A
Degree of protection (IP)IP20
Number of protected poles1
Suitable for flush-mounted installationYes
Rated short-circuit breaking capacity according to IEC 60947-210kA
Concurrently switching neutral conductorYes
Connectable conductor cross section multi-wired0.75 - 10mm²
With interlocking deviceYes
Connectable conductor cross section solid-core0.75 - 16mm²
Rated short-circuit breaking capacity Icn according to EN 61009-110kA
Ambient temperature during operating- - -°C
Anti-nuisance tripping versionNo
Rated impulse withstand voltage Uimp-kV
Number of poles (total)2
Rated short-circuit breaking capacity according to EN 6100910kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

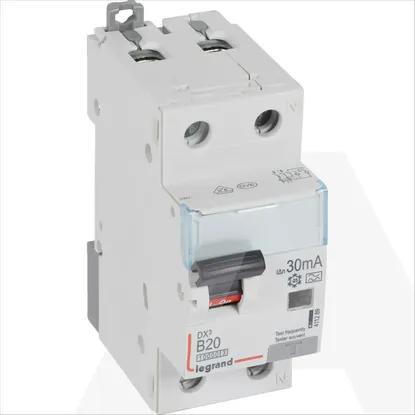

411289 | KZS DX3 1P+N B20 10KA A 30MA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Earth leakage circuit breaker
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Release characteristic
B
Rated current
20A
Voltage type
AC
Rated insulation voltage Ui
-V
Rated voltage
230V
Built-in depth
44mm
Over voltage category
-
Surge current capacity
0.25kA
Frequency
50 Hz
Current limiting class
3
Width in number of modular spacings
4
Leakage current type
A
Pollution degree
2
Rated fault current
0.03A
Degree of protection (IP)
IP20
Number of protected poles
1
Suitable for flush-mounted installation
Rated short-circuit breaking capacity according to IEC 60947-2
10kA
Concurrently switching neutral conductor
Connectable conductor cross section multi-wired
0.75 .. 10mm²
With interlocking device
Connectable conductor cross section solid-core
0.75 .. 16mm²
Rated short-circuit breaking capacity Icn according to EN 61009-1
10kA
Ambient temperature during operating
- .. -°C
Anti-nuisance tripping version
Rated impulse withstand voltage Uimp
-kV
Number of poles (total)
2
Rated short-circuit breaking capacity according to EN 61009
10kA
