Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Built-in depth44mm
Rated voltage230V
Over voltage category-
Frequency50 Hz
Pollution degree2
Rated insulation voltage Ui-V
Release characteristicB
Rated fault current0.03A
Width in number of modular spacings4
Surge current capacity0.25kA
Leakage current typeA
Current limiting class3
Rated current25A
Degree of protection (IP)IP20
Concurrently switching neutral conductorYes
Rated short-circuit breaking capacity Icn according to EN 61009-110kA
Suitable for flush-mounted installationYes
Number of poles (total)2
With interlocking deviceYes
Connectable conductor cross section solid-core0.75 - 16mm²
Ambient temperature during operating- - -°C
Number of protected poles1
Rated impulse withstand voltage Uimp-kV
Anti-nuisance tripping versionNo
Rated short-circuit breaking capacity according to IEC 60947-210kA
Rated short-circuit breaking capacity according to EN 6100910kA
Connectable conductor cross section multi-wired0.75 - 10mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

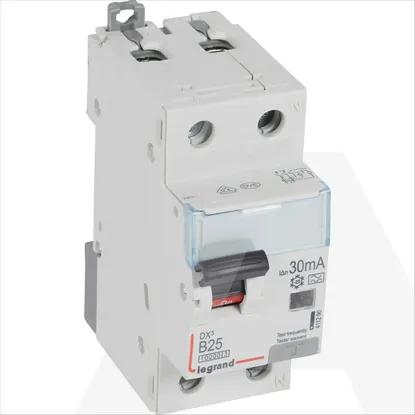

411290 | KZS DX3 1P+N B25 10KA A 30MA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Earth leakage circuit breaker
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Voltage type
AC
Built-in depth
44mm
Rated voltage
230V
Over voltage category
-
Frequency
50 Hz
Pollution degree
2
Rated insulation voltage Ui
-V
Release characteristic
B
Rated fault current
0.03A
Width in number of modular spacings
4
Surge current capacity
0.25kA
Leakage current type
A
Current limiting class
3
Rated current
25A
Degree of protection (IP)
IP20
Concurrently switching neutral conductor
Rated short-circuit breaking capacity Icn according to EN 61009-1
10kA
Suitable for flush-mounted installation
Number of poles (total)
2
With interlocking device
Connectable conductor cross section solid-core
0.75 .. 16mm²
Ambient temperature during operating
- .. -°C
Number of protected poles
1
Rated impulse withstand voltage Uimp
-kV
Anti-nuisance tripping version
Rated short-circuit breaking capacity according to IEC 60947-2
10kA
Rated short-circuit breaking capacity according to EN 61009
10kA
Connectable conductor cross section multi-wired
0.75 .. 10mm²
