Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Pollution degree2
Surge current capacity0.25kA
Rated insulation voltage Ui-V
Current limiting class3
Rated current6A
Voltage typeAC
Rated fault current0.03A
Frequency50 Hz
Rated voltage230V
Width in number of modular spacings4
Number of protected poles1
Degree of protection (IP)IP20
Leakage current typeA
Over voltage category-
Built-in depth44mm
Release characteristicC
Connectable conductor cross section solid-core0.75 - 16mm²
Rated impulse withstand voltage Uimp-kV
Rated short-circuit breaking capacity according to EN 6100910kA
Rated short-circuit breaking capacity according to IEC 60947-210kA
Concurrently switching neutral conductorYes
Number of poles (total)2
With interlocking deviceYes
Rated short-circuit breaking capacity Icn according to EN 61009-110kA
Connectable conductor cross section multi-wired0.75 - 10mm²
Anti-nuisance tripping versionNo
Suitable for flush-mounted installationYes
Ambient temperature during operating- - -°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

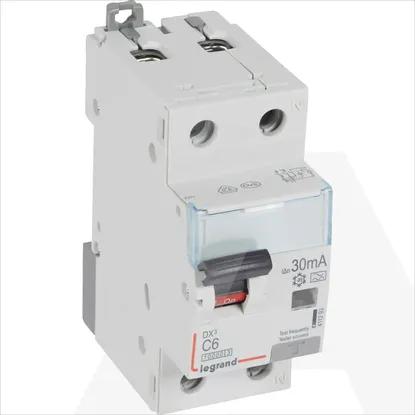

411293 | KZS DX3 1P+N C6 10KA A 30MA
