Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Rated insulation voltage Ui-V
Built-in depth44mm
Frequency50 Hz
Degree of protection (IP)IP20
Rated current16A
Pollution degree2
Connectable conductor cross section solid-core0.75 - 16mm²
Concurrently switching neutral conductorYes
Number of protected poles1
With interlocking deviceYes
Width in number of modular spacings4
Ambient temperature during operating- - -°C
Rated fault current0.03A
Surge current capacity0.25kA
Leakage current typeA
Rated voltage230V
Current limiting class3
Connectable conductor cross section multi-wired0.75 - 10mm²
Over voltage category-
Release characteristicC
Rated short-circuit breaking capacity according to IEC 60947-210kA
Number of poles (total)2
Rated impulse withstand voltage Uimp-kV
Anti-nuisance tripping versionNo
Suitable for flush-mounted installationYes
Rated short-circuit breaking capacity Icn according to EN 61009-110kA
Rated short-circuit breaking capacity according to EN 6100910kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

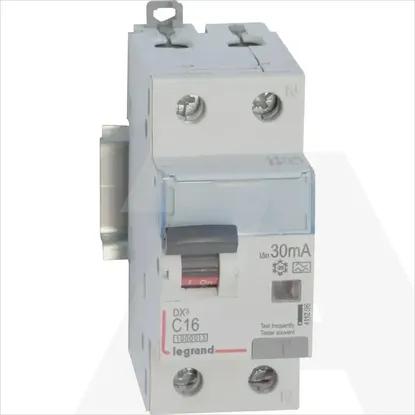

411296 | KZS DX3 1P+N C16 10KA A 30MA
