Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Rated insulation voltage Ui-V
Rated voltage230V
Built-in depth44mm
Voltage typeAC
Rated current20A
Release characteristicC
Surge current capacity0.25kA
Rated fault current0.03A
Leakage current typeA
Current limiting class3
Width in number of modular spacings4
Concurrently switching neutral conductorYes
Number of protected poles1
Rated short-circuit breaking capacity according to IEC 60947-210kA
Suitable for flush-mounted installationYes
Frequency50 Hz
Degree of protection (IP)IP20
Over voltage category-
Pollution degree2
Connectable conductor cross section solid-core0.75 - 16mm²
Rated short-circuit breaking capacity Icn according to EN 61009-110kA
Rated impulse withstand voltage Uimp-kV
With interlocking deviceYes
Number of poles (total)2
Anti-nuisance tripping versionNo
Rated short-circuit breaking capacity according to EN 6100910kA
Ambient temperature during operating- - -°C
Connectable conductor cross section multi-wired0.75 - 10mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

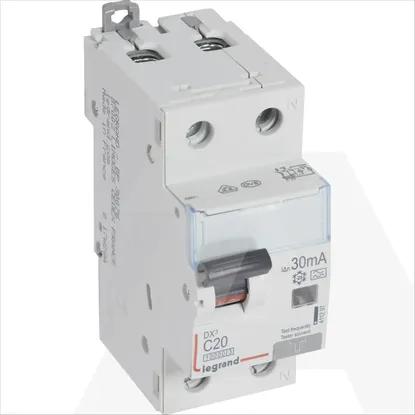

411297 | KZS DX3 1P+N C20 10KA A 30MA
