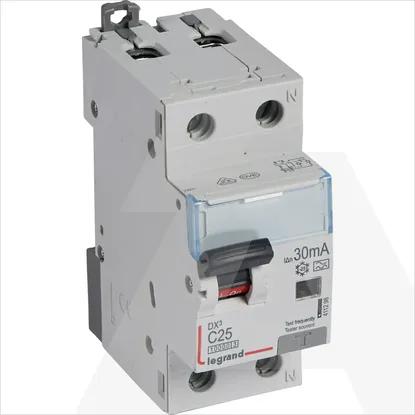

411298 | KZS DX3 1P+N C25 10KA A 30MA
Code: 1778910
Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Degree of protection (IP)IP20
Voltage typeAC
Suitable for flush-mounted installationYes
Rated current25A
Rated voltage230V
Built-in depth44mm
Width in number of modular spacings4
Release characteristicC
Ambient temperature during operating- - -°C
Connectable conductor cross section multi-wired0.75 - 10mm²
Number of protected poles1
Connectable conductor cross section solid-core0.75 - 16mm²
Number of poles (total)2
Rated impulse withstand voltage Uimp-kV
Rated insulation voltage Ui-V
Current limiting class3
Pollution degree2
Concurrently switching neutral conductorYes
Over voltage category-
Frequency50 Hz
Surge current capacity0.25kA
With interlocking deviceYes
Anti-nuisance tripping versionNo
Rated fault current0.03A
Leakage current typeA
Rated short-circuit breaking capacity according to IEC 60947-210kA
Rated short-circuit breaking capacity Icn according to EN 61009-110kA
Rated short-circuit breaking capacity according to EN 6100910kA
