Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Surge current capacity0.25kA
Rated fault current0.03A
Release characteristicC
Rated voltage230V
Rated insulation voltage Ui-V
Rated current32A
Voltage typeAC
Built-in depth44mm
Suitable for flush-mounted installationYes
Frequency50 Hz
Over voltage category-
Leakage current typeA
Rated short-circuit breaking capacity according to IEC 60947-210kA
Width in number of modular spacings4
Degree of protection (IP)IP20
Number of protected poles1
Pollution degree2
Current limiting class3
Concurrently switching neutral conductorYes
Connectable conductor cross section solid-core0.75 - 16mm²
Rated impulse withstand voltage Uimp-kV
Anti-nuisance tripping versionNo
Connectable conductor cross section multi-wired0.75 - 10mm²
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 61009-110kA
Ambient temperature during operating- - -°C
Rated short-circuit breaking capacity according to EN 6100910kA
With interlocking deviceYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

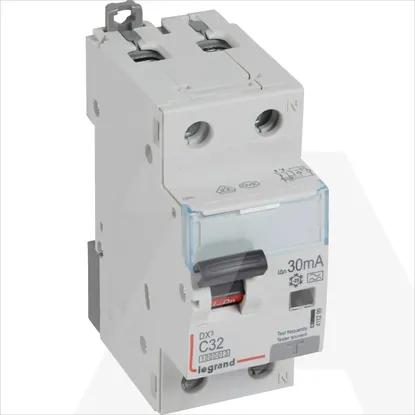

411299 | KZS DX3 1P+N C32 10KA A 30MA
