Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Rated current10A
Current limiting class3
Rated fault current0.03A
Rated short-circuit breaking capacity according to IEC 60947-210kA
Pollution degree2
Degree of protection (IP)IP20
Connectable conductor cross section solid-core0.75 - 16mm²
Rated voltage230V
Voltage typeAC
Frequency50 Hz
Release characteristicB
Over voltage category-
Rated insulation voltage Ui-V
Leakage current typeA
Built-in depth44mm
Concurrently switching neutral conductorYes
Width in number of modular spacings4
Surge current capacity3kA
Number of protected poles1
Suitable for flush-mounted installationYes
Number of poles (total)2
With interlocking deviceYes
Rated impulse withstand voltage Uimp-kV
Rated short-circuit breaking capacity Icn according to EN 61009-110kA
Ambient temperature during operating- - -°C
Anti-nuisance tripping versionNo
Rated short-circuit breaking capacity according to EN 6100910kA
Connectable conductor cross section multi-wired0.75 - 10mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

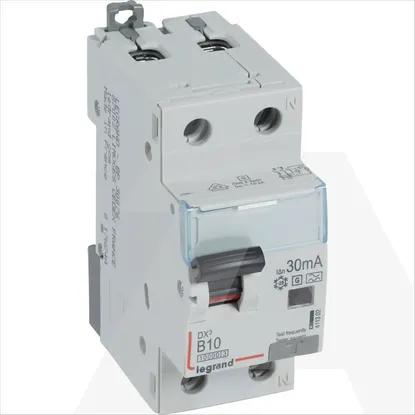

411302 | KZS DX3 1P+N B10 10KA A-G 30MA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Earth leakage circuit breaker
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Rated current
10A
Current limiting class
3
Rated fault current
0.03A
Rated short-circuit breaking capacity according to IEC 60947-2
10kA
Pollution degree
2
Degree of protection (IP)
IP20
Connectable conductor cross section solid-core
0.75 .. 16mm²
Rated voltage
230V
Voltage type
AC
Frequency
50 Hz
Release characteristic
B
Over voltage category
-
Rated insulation voltage Ui
-V
Leakage current type
A
Built-in depth
44mm
Concurrently switching neutral conductor
Width in number of modular spacings
4
Surge current capacity
3kA
Number of protected poles
1
Suitable for flush-mounted installation
Number of poles (total)
2
With interlocking device
Rated impulse withstand voltage Uimp
-kV
Rated short-circuit breaking capacity Icn according to EN 61009-1
10kA
Ambient temperature during operating
- .. -°C
Anti-nuisance tripping version
Rated short-circuit breaking capacity according to EN 61009
10kA
Connectable conductor cross section multi-wired
0.75 .. 10mm²
