Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Built-in depth44mm
Voltage typeAC
Rated voltage230V
Rated current13A
Rated insulation voltage Ui-V
Suitable for flush-mounted installationYes
Degree of protection (IP)IP20
Connectable conductor cross section solid-core0.75 - 16mm²
Rated short-circuit breaking capacity according to IEC 60947-210kA
Current limiting class3
Pollution degree2
Surge current capacity3kA
Leakage current typeA
Concurrently switching neutral conductorYes
Frequency50 Hz
Number of protected poles1
Width in number of modular spacings4
Rated fault current0.03A
Release characteristicB
Over voltage category-
With interlocking deviceYes
Rated short-circuit breaking capacity Icn according to EN 61009-110kA
Connectable conductor cross section multi-wired0.75 - 10mm²
Ambient temperature during operating- - -°C
Rated short-circuit breaking capacity according to EN 6100910kA
Rated impulse withstand voltage Uimp-kV
Anti-nuisance tripping versionNo
Number of poles (total)2
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

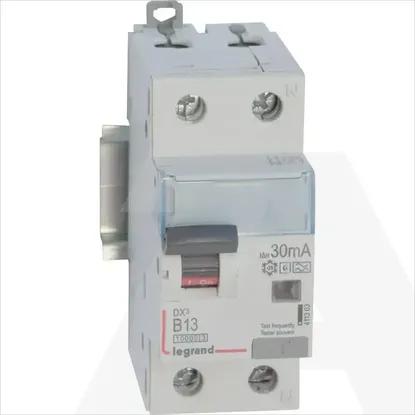

411303 | KZS DX3 1P+N B13 10KA A-G 30MA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Earth leakage circuit breaker
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Built-in depth
44mm
Voltage type
AC
Rated voltage
230V
Rated current
13A
Rated insulation voltage Ui
-V
Suitable for flush-mounted installation
Degree of protection (IP)
IP20
Connectable conductor cross section solid-core
0.75 .. 16mm²
Rated short-circuit breaking capacity according to IEC 60947-2
10kA
Current limiting class
3
Pollution degree
2
Surge current capacity
3kA
Leakage current type
A
Concurrently switching neutral conductor
Frequency
50 Hz
Number of protected poles
1
Width in number of modular spacings
4
Rated fault current
0.03A
Release characteristic
B
Over voltage category
-
With interlocking device
Rated short-circuit breaking capacity Icn according to EN 61009-1
10kA
Connectable conductor cross section multi-wired
0.75 .. 10mm²
Ambient temperature during operating
- .. -°C
Rated short-circuit breaking capacity according to EN 61009
10kA
Rated impulse withstand voltage Uimp
-kV
Anti-nuisance tripping version
Number of poles (total)
2
