Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Rated voltage230V
Rated current20A
Rated insulation voltage Ui-V
Release characteristicB
Surge current capacity3kA
Built-in depth44mm
Rated fault current0.03A
Leakage current typeA
Over voltage category-
Current limiting class3
Pollution degree2
Width in number of modular spacings4
Concurrently switching neutral conductorYes
Degree of protection (IP)IP20
Number of protected poles1
Frequency50 Hz
Rated short-circuit breaking capacity according to IEC 60947-210kA
Connectable conductor cross section multi-wired0.75 - 10mm²
Ambient temperature during operating- - -°C
Number of poles (total)2
Anti-nuisance tripping versionNo
With interlocking deviceYes
Connectable conductor cross section solid-core0.75 - 16mm²
Suitable for flush-mounted installationYes
Rated impulse withstand voltage Uimp-kV
Rated short-circuit breaking capacity Icn according to EN 61009-110kA
Rated short-circuit breaking capacity according to EN 6100910kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

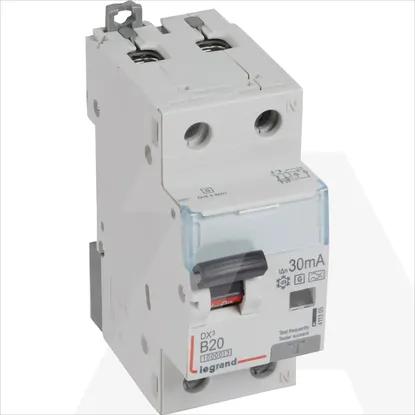

411305 | KZS DX3 1P+N B20 10KA A-G 30MA
