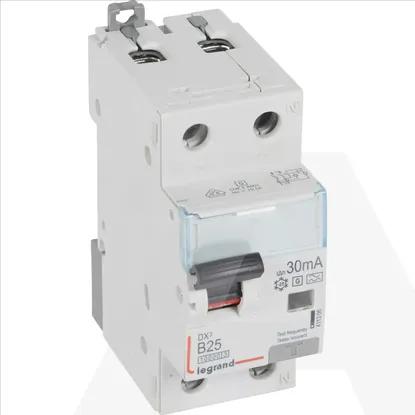

  • •Circuit breakers and fuses
  • •Earth leakage circuit breaker
  • •Minimum order quantity: 1 pcs
  • •LEGRAND

Technical specifications

Voltage typeAC
Built-in depth44mm
Over voltage category-
Release characteristicB
Surge current capacity3kA
Rated voltage230V
Rated insulation voltage Ui-V
Suitable for flush-mounted installationYes
Width in number of modular spacings4
Rated short-circuit breaking capacity according to IEC 60947-210kA
Number of protected poles1
Anti-nuisance tripping versionNo
Ambient temperature during operating- - -°C
Connectable conductor cross section solid-core0.75 - 16mm²
Connectable conductor cross section multi-wired0.75 - 10mm²
Pollution degree2
With interlocking deviceYes
Concurrently switching neutral conductorYes
Frequency50 Hz
Current limiting class3
Rated short-circuit breaking capacity Icn according to EN 61009-110kA
Rated impulse withstand voltage Uimp-kV
Degree of protection (IP)IP20
Rated short-circuit breaking capacity according to EN 6100910kA
Rated current25A
Rated fault current0.03A
Leakage current typeA
Number of poles (total)2
