Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Width in number of modular spacings4
Release characteristicC
Frequency50 Hz
Rated fault current0.03A
Pollution degree2
Surge current capacity3kA
Degree of protection (IP)IP20
Rated voltage230V
Built-in depth44mm
Rated insulation voltage Ui-V
Rated current10A
Over voltage category-
Number of protected poles1
Current limiting class3
Leakage current typeA
Voltage typeAC
Concurrently switching neutral conductorYes
Connectable conductor cross section solid-core0.75 - 16mm²
Rated short-circuit breaking capacity according to IEC 60947-210kA
Connectable conductor cross section multi-wired0.75 - 10mm²
Number of poles (total)2
Ambient temperature during operating- - -°C
With interlocking deviceYes
Anti-nuisance tripping versionNo
Rated short-circuit breaking capacity according to EN 6100910kA
Suitable for flush-mounted installationYes
Rated short-circuit breaking capacity Icn according to EN 61009-110kA
Rated impulse withstand voltage Uimp-kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

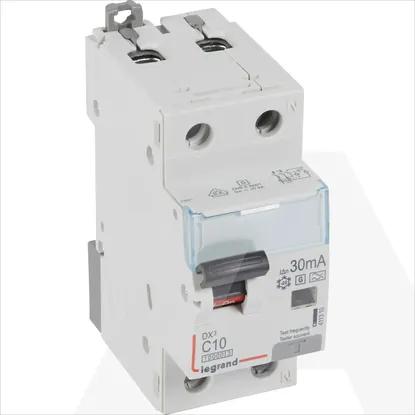

411310 | KZS DX3 1P+N C10 10KA A-G 30MA
