Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Rated current20A
Voltage typeAC
Release characteristicC
Rated voltage230V
Built-in depth44mm
Rated fault current0.03A
Rated insulation voltage Ui-V
Rated impulse withstand voltage Uimp-kV
Rated short-circuit breaking capacity according to EN 6100910kA
Surge current capacity3kA
Anti-nuisance tripping versionNo
Rated short-circuit breaking capacity according to IEC 60947-210kA
Current limiting class3
Pollution degree2
Frequency50 Hz
Over voltage category-
Leakage current typeA
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 61009-110kA
With interlocking deviceYes
Ambient temperature during operating- - -°C
Degree of protection (IP)IP20
Width in number of modular spacings4
Suitable for flush-mounted installationYes
Connectable conductor cross section multi-wired0.75 - 10mm²
Connectable conductor cross section solid-core0.75 - 16mm²
Number of protected poles1
Concurrently switching neutral conductorYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

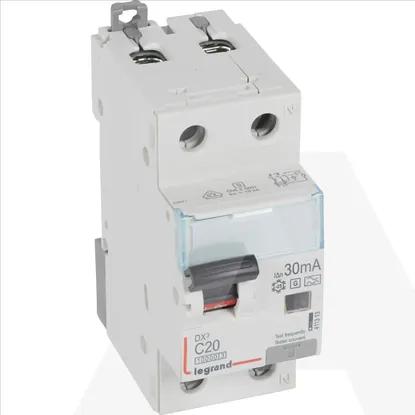

411313 | KZS DX3 1P+N C20 10KA A-G 30MA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Earth leakage circuit breaker
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Rated current
20A
Voltage type
AC
Release characteristic
C
Rated voltage
230V
Built-in depth
44mm
Rated fault current
0.03A
Rated insulation voltage Ui
-V
Rated impulse withstand voltage Uimp
-kV
Rated short-circuit breaking capacity according to EN 61009
10kA
Surge current capacity
3kA
Anti-nuisance tripping version
Rated short-circuit breaking capacity according to IEC 60947-2
10kA
Current limiting class
3
Pollution degree
2
Frequency
50 Hz
Over voltage category
-
Leakage current type
A
Number of poles (total)
2
Rated short-circuit breaking capacity Icn according to EN 61009-1
10kA
With interlocking device
Ambient temperature during operating
- .. -°C
Degree of protection (IP)
IP20
Width in number of modular spacings
4
Suitable for flush-mounted installation
Connectable conductor cross section multi-wired
0.75 .. 10mm²
Connectable conductor cross section solid-core
0.75 .. 16mm²
Number of protected poles
1
Concurrently switching neutral conductor
