Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Rated fault current0.3A
Voltage typeAC
Pollution degree2
Built-in depth44mm
Rated voltage400V
Over voltage category-
Width in number of modular spacings4
Release characteristicB
Surge current capacity0.25kA
Rated insulation voltage Ui-V
Leakage current typeAC
Current limiting class1
Rated current20A
Rated short-circuit breaking capacity according to IEC 60947-210kA
Number of poles (total)4
Rated short-circuit breaking capacity according to EN 610096kA
Suitable for flush-mounted installationYes
Frequency50 Hz
Anti-nuisance tripping versionNo
With interlocking deviceYes
Concurrently switching neutral conductorYes
Rated impulse withstand voltage Uimp-kV
Ambient temperature during operating- - -°C
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Connectable conductor cross section multi-wired- - -mm²
Connectable conductor cross section solid-core- - -mm²
Degree of protection (IP)IP20
Number of protected poles4
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

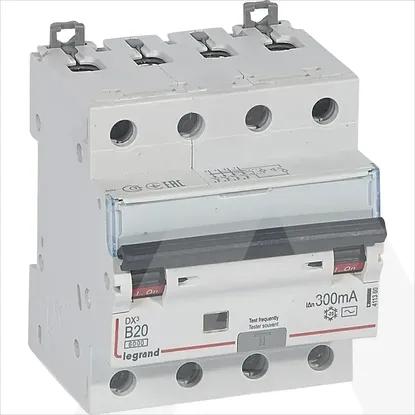

411360 | KZS DX3 4P B20 10KA AC 300MA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Earth leakage circuit breaker
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Rated fault current
0.3A
Voltage type
AC
Pollution degree
2
Built-in depth
44mm
Rated voltage
400V
Over voltage category
-
Width in number of modular spacings
4
Release characteristic
B
Surge current capacity
0.25kA
Rated insulation voltage Ui
-V
Leakage current type
AC
Current limiting class
1
Rated current
20A
Rated short-circuit breaking capacity according to IEC 60947-2
10kA
Number of poles (total)
4
Rated short-circuit breaking capacity according to EN 61009
6kA
Suitable for flush-mounted installation
Frequency
50 Hz
Anti-nuisance tripping version
With interlocking device
Concurrently switching neutral conductor
Rated impulse withstand voltage Uimp
-kV
Ambient temperature during operating
- .. -°C
Rated short-circuit breaking capacity Icn according to EN 61009-1
6kA
Connectable conductor cross section multi-wired
- .. -mm²
Connectable conductor cross section solid-core
- .. -mm²
Degree of protection (IP)
IP20
Number of protected poles
4
