Details

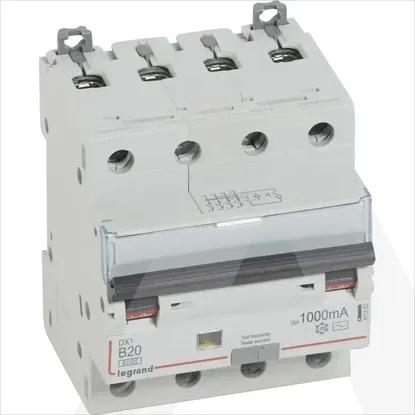

  • •Circuit breakers and fuses
  • •Earth leakage circuit breaker
  • •Minimum order quantity: 1 pcs
  • •LEGRAND

Technical specifications

Voltage typeAC
Built-in depth44mm
Surge current capacity0.25kA
Release characteristicB
Rated insulation voltage Ui-V
Rated voltage400V
Current limiting class1
Pollution degree2
Width in number of modular spacings4
Frequency50 Hz
Degree of protection (IP)IP20
Over voltage category-
Concurrently switching neutral conductorYes
Number of protected poles4
Rated short-circuit breaking capacity according to IEC 60947-210kA
Suitable for flush-mounted installationYes
Ambient temperature during operating- - -°C
Anti-nuisance tripping versionNo
With interlocking deviceYes
Connectable conductor cross section multi-wired- - -mm²
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Connectable conductor cross section solid-core- - -mm²
Rated impulse withstand voltage Uimp-kV
Rated short-circuit breaking capacity according to EN 610096kA
Rated current20A
Rated fault current1A
Leakage current typeAC
Number of poles (total)4
